Typical Single Cylinder Pneumatic Circuits

For more information, please read any of the publications:

Pneumatic Systems and Circuits -Basic Level (In the SI Units)

Industrial Pneumatics -Basic Level (In the English Units)

This blog provides the following self-explanatory basic pneumatic circuits with only a single cylinder.

Direct control of a single acting cylinder

Indirect control of a single acting cylinder

Speed control of a single acting cylinder

Direct control of a double acting cylinder

Indirect control of a double acting cylinder

Speed control of a double acting cylinder

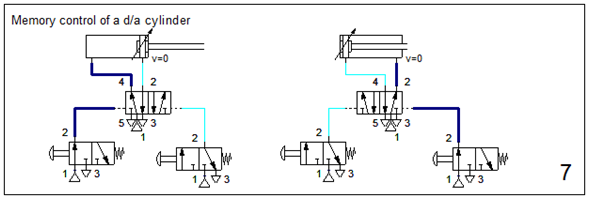

Memory control of a pneumatic cylinder

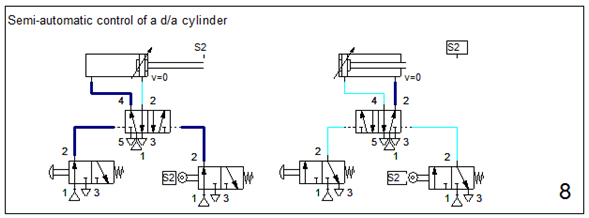

Semi automatic control of a pneumatic cylinder

OR logic control of a pneumatic cylinder

AND logic control of a pneumatic cylinder

Time delay control of a pneumatic cylinder

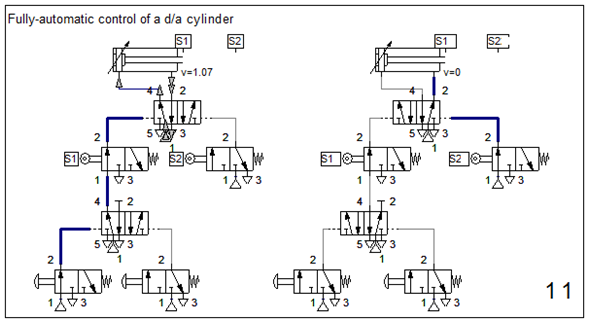

Fully automatic control of a pneumatic cylinder

You may refresh your memory…

Fluidsys Training Centre Pvt. Ltd., Bangalore, India

Mob: +917338385505 | email: info@fluidsys.org | Website: https://fluidsys.org
